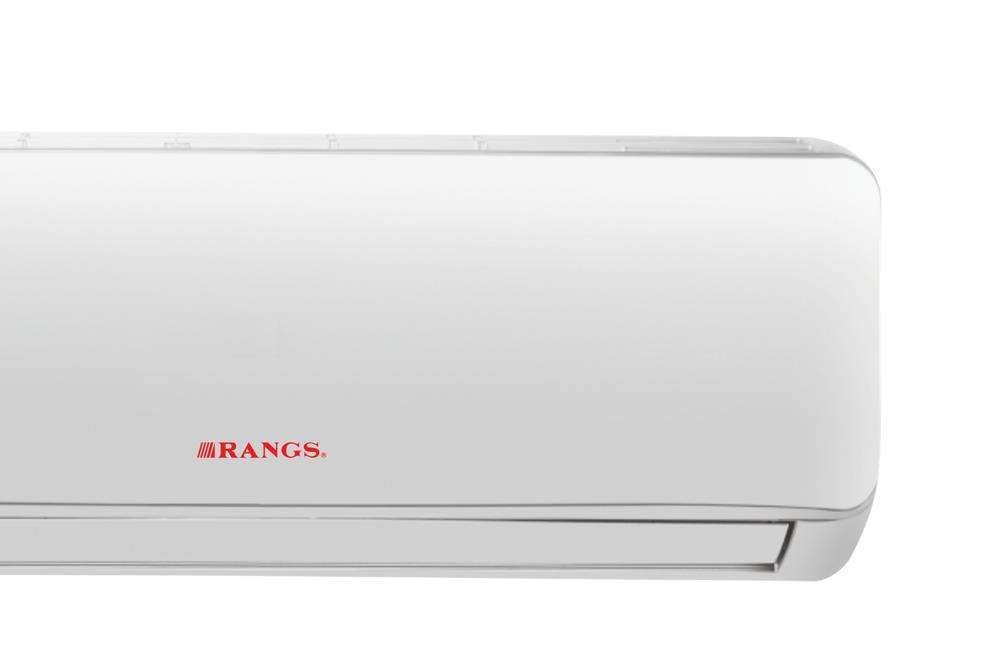

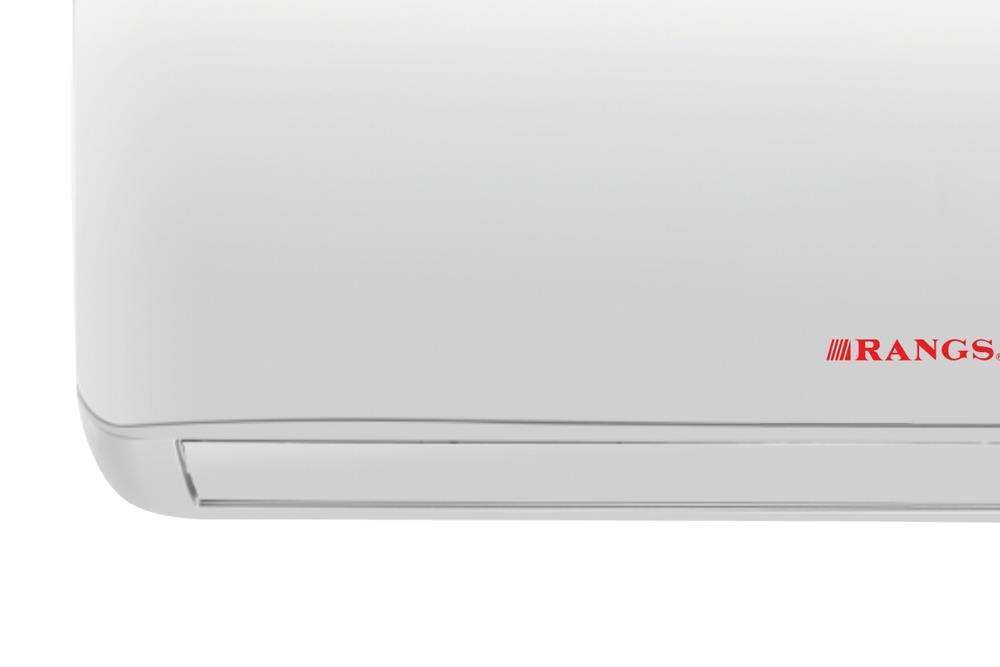

Rangs RAC-26SH 2 Ton Split Type AC

Sold by

(0 customer reviews)

Visit Store

Top Selling Products

RANGS 1.5 TON SMART-WI-FI INVERTER SPLIT TYPE AC

৳58,350.00
Rangs RAC-14SH 01 Ton Split Type AC

৳35,500.00
KELVINATOR 1.5 TON SMART-WI-FI INVERTER SPLIT TYPE AC

৳59,900.00
GS-24XPUV32-Gree Pular Split Type Air Conditioner (Inverter-2.0 TON)

৳78,550.00
GSH-24NFA410 Fairy-Split Type, H&C (2.0 TON)

৳70,550.00
RANGS 02 TON SMART-WI-FI INVERTER SPLIT TYPE AC

৳68,000.00

Description reviews

PARAMETERS			UNITS	RAC-26SH
About MODEL	Type of AC :	Split / Window/Light Commercial/VRF/Chill	Details	Split
		Fixed Speed / Inverter		Fixed Speed
		Cool only/ Heat & cool		Cool only
	Product selling	Country name		Bangladesh
	Capacity:	Cooling capacity	Watt	7034
	Capacity:	Heating capacity	Watt	N/A
Operating Conditions	Power supply	Rated Voltage & phase	Volts	230V & Single
	Power supply	Rated frequency	Hz	50Hz
	Running Condition	Withstanding Operating conditions	°C	20-43
		Cooling Area	sq. ft	180-240
		Lowest running voltage	Volts	170
		Highest running voltage	Volts	264
	Cooling	Capacity at rated condition (If required)	Watt	7034
	Cooling	Power consumption in rated condition	Watt	2280
Performance	Cooling data	SEER/EER/COP (If any special requirement)	W/W	3.08
		Cooling Input Current	A	10.7
		Max. Input Current	A	13.04
Indoor Unit Information	General	Indoor side airflow (High)	m3/h	1100
		Indoor side noise level (High)	dB(A)	49
		Dimensions (LWH)	mm	1097 x 329 x 258
		Packing (LWH)	mm	1175 x 405 x 310
		Weight: Net & Gross	Kg	17±0.5 & 19±0.5
	Motor	Motor Type: Single-Phase Induction	Details	Induction (PG)
		Motors Mechanical output Wattage	Watt	45
		Capacitor	uF	3
		Indoor Fan speed (Turbo/High/Medium/Low)	r/min	1220/1180/1100/1000
		Thermal protector	Yes/ No	Yes
	Fan	Dimensions (Dia* Length)	mm	Φ108, L- 841±1
	Fan	Material of Blades	Details	SAN 30% GF
	Evaporator	Rows * Tubes	No's	2*17
		Tube pitch (a) x row pitch (b)	mm	21 x 12.7
		Hairpin copper tube length		892
		Tube specification		ODΦ7.0 x 0.25+0.18 IGT
		Tube Material & Grade	Details	DHP COPPER, C12200
		Fin spacing	mm	1.2
		Fin type	Details	Louvered
		Fin Material (Bare or Golden/Blue/Silver Coa		Aluminum (Hydrophilic Golden coated)
	Control board	Transformer Base/ SMPS Base		SMPS
		PU/ Protective layer		PU
		EMI/EMC compatible		NO
				NO
		Display PCB: LCD Display/ 7Seg Display/ LED indicators		LED Digit Display
		Swing Motors: Qty, Purpose		2, Left/right, Up/Down
		Temperature sensor: Nos & Locations		2, air inlet, Eva inlet
	Other	Filter Type		Mesh Filter
		Power cord & Plug		Yes, 1.5 Meter
		Connecting wire between IDU & ODU: Leng	meter	3.5
		Connecting tube(CU with insulation) between	meter	3±0.05
Outdoor	General	Outdoor side noise level (Turbo/High)	dB(A)	59-Turbo; 58-High
		Dimension : LWH (Including foot & service	mm	865 x 370 x 687
		Packing: LWH	mm	935 x 430 x 740
		Weight: Net & Gross	Kg	46±1 & 52±1
		Max. discharge/Suction pressure	MPa	4.30/1.30
	Compressor	Preferred Model	Details	Lamda-QXA-F265F050
		Type: Fixed speed / Inverter	Details	Fixed Speed
		Inverter Frequency Range: Min to Max	Hz	N/A
		Locked rotor Amp(LRA)	A	49.5 at 220V
		Thermal protector	Yes/ No	Yes
		Overload Protector (Location)	Details	internal
		Capacitor (If applicable)	uF	50
	Fan motor	Motor Type: Single-Phase Induction	Details	Induction
		Motors Mechanical output Wattage	Watt	55
		Capacitor	μF	4
		Outdoor Fan speed	R/min	850
		Thermal protector	Yes/ No	Yes
Unit Information	Fan	Dimensions (Dia* Hight)	mm	Φ420, H-133
		Number of Blades	No's	4
		Material of Blades	Details	ABS 20%GF
	Condenser	Rows*Tubes	No's	2*15
		Tube pitch(a)x row pitch(b)	mm	21 x 12.7
		Coil length		800 OR; 775 IR
		Tube outside & Inside diameter		ODΦ7.0 x 0.25+0.18 IGT
		Tube Material & Grade	Details	DHP COPPER, C12200
		Fin Type	Details	Slit
		Fin spacing	mm	1.2
		Fin Material	Details	Aluminum (Hydrophilic Golden coated)
	Expansion device	Capillary/EEV		Capillary
	Expansion device	Material (IF capillary)	Details	Copper Tube
	PCB	PCB Protection: PU/ Protective layer		NA

		PFC: Active/passive
		Temperature sensor Nos & Locations	Details
	Other	Gas/ Refrigerant Type	Details	R-410a
	Other	Gas/ Refrigerant Qty	KG	1.48
Remote		Yes/No	Pcs	Yes
		RF / IR Based	Details	IR
		Frequency	MHz	16
		Operating Range	Meter	8
		Display	Yes/ No	LCD
Packaging		Number of Ply: 3/5/7/Other	Details	5 Ply
		GSM	GSM	Indoor: 908±10, Outdoor: 936 ±10
			Details	B+C
		BS (Bursting Strength)	psi	160-180
		EPS (Thermocol) Locations: Bottom, Side, Top, other (Pls Specify)	Details	IDU: Two Sides & ODU: Bottom & Top

Installation charge will be TK 3500

Installation Charges are not Included. The cost & works for electric wiring, civil position, and Angle, extra pipe charge should be borne by the customer.
